LAN-DP12H

DP 1.2 Hybrid AOC, 4K@60Hz, 10/15/20/25/30/40/50/60/70/100M

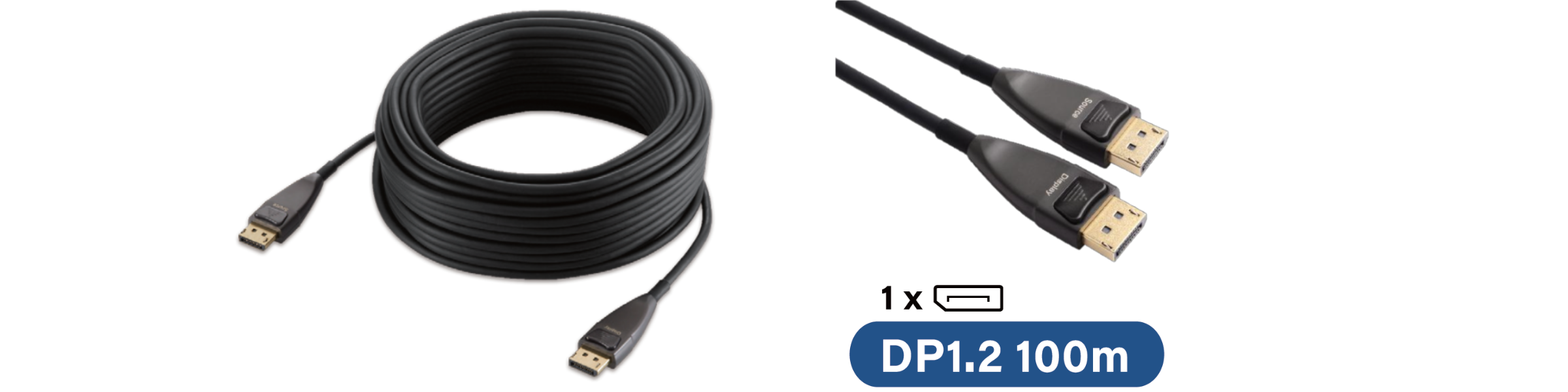

Description

  This fiber optic cable system let your DisplayPort 1.2 compliant display device extend up to 100 meters away from host based on DisplayPort 1.2 standard without signal degradation by 4K*2K@60Hz resolution.

Feature

● DisplayPort 1.2 Mode.

● Input: Display port Male.

● Output: Source port Male.

● Connector the pin and shell gold plating.

● Metal housing with lock.

● Converts electrical data signals to optical signals.

● 4 Core OM3 Multimode Fiber (high speed data) & 7 Core copper cable.

● Round cable Black PVC jacket, OD 4.8mm.

● Bending radius > 20mm.

● Easy to install with Active Optic Cable.

● Resolution 3840*2160@60Hz.

● Supports bandwidth up to 21.6 Gbps.

● Supports 3D/EDID.

● Operation temperature: 0˚C ~ 50˚C.

● Storage temperature: -20˚C ~ 70˚C.

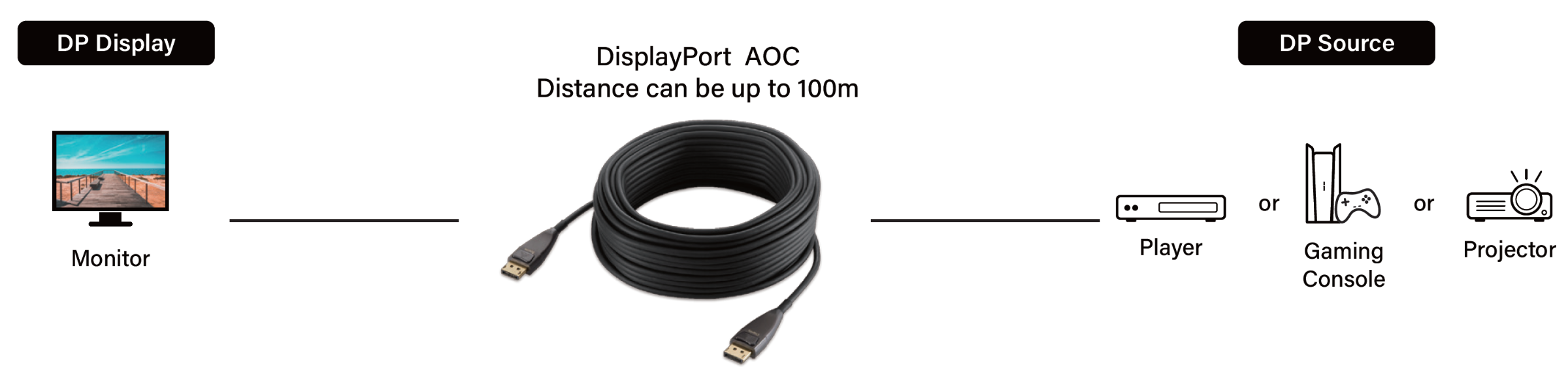

Application
