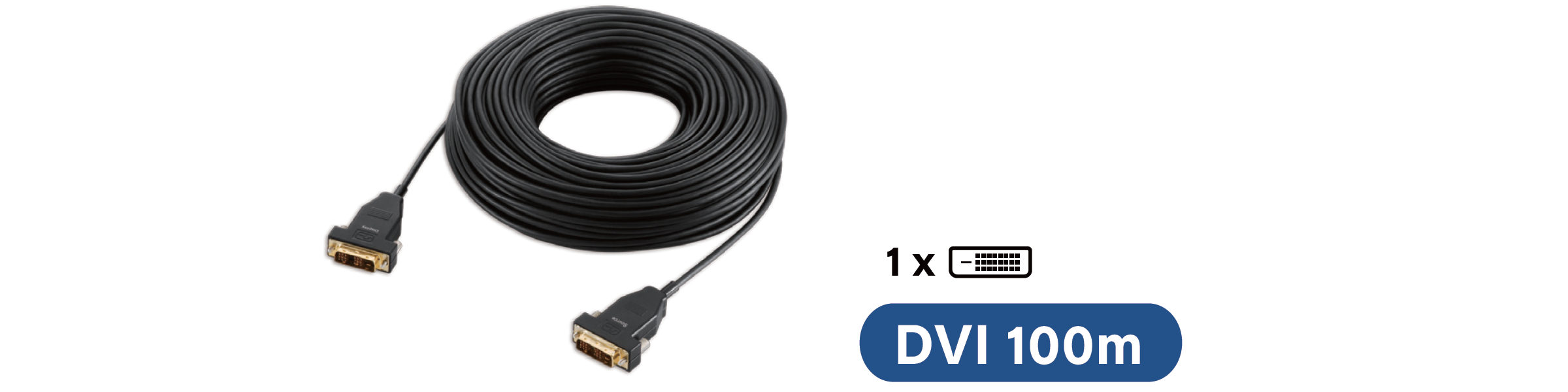

LAN-DVH

DVI Hybrid AOC, 4K@30Hz, 1080p@60Hz, 10/15/20/25/30/40/50/70/100M

Description

  The LAN-DVH Hybrid AOC cable can support resolution 4K@30Hz and 1080p@60Hz and the distance up to 100M.

Feature

● Input: DVI-D Single Link Male Plug Source.

● Output: DVI-D Single Link Male Plug Display.

● Minimal: 4.5mm OD.

● Connector Metal Housing.

● Connector the pin and shell gold plating.

● 4 Core OM3 Multimode Fiber (high speed data) & copper (power and low speed data).

● Round cable Black PVC jacket.

● Bending radius > 20mm.

● Supports resolutions up to 1080P.

● Operation temperature: 0˚C ~ 50˚C.

● Storage temperature: -20˚C ~ 70˚C.

Application
