LAN-U3T

USB 3 Gen 1 Gen 1 AOC Cable, AM-AM & AF-AF (Dongle), 10/20/30/50/100M

Description

  The USB 3 Gen 1 Active Optical Cable was designed to be fully compliant with Super Speed USB electrical specifications. .It connects the Super TT dongle is capable of realizing mutual conversion between USB 3 Gen 1 and USB 2.0 protocols, so as to enable USB 2.0 equipment to share the super speed bandwidth (5 Gbps) of USB 3 Gen 1 and the electrical-to-optical conversion on the cable ends to improve speed and distance performance of the cable which supports far longer distance than standard copper cable, with lengths of up to 100M available.With an ultra-thin profile and long reach, the USB 3 Gen 1 AOC breaks the distance barrier and introduces USB 3Gen 1 devices to a whole new range of applications, such as long distance machine vision, security & High Definition surveillance, industrial & medical machine control.AOC offer a quick solution to supply longer cable for USB 3 Gen 1 application.

Feature

● Extend USB 3 Gen 1 devices up to 100 M over fiber optics.

● Downstream port Compatible to USB2.0/1.1

● Convert USB electrical data signal to optical signal.

● Compliant with Super Speed USB specifications, 5 Gbps data rate.

● Supports 850 nm VCSEL (Multi-Mode).

● Less EMI/RFI for sensitive environment.

● Metal housing for superior EMI performance.

● Low power consumption.

● Plug and play.

● Lighter, thinner, 3.0 mm fiber cable diameter.

● Supports all major operating systems including Windows, Mac OS 10.8 and higher, and Linux Kernel 3.11.10 and higher.

● Available in 10/20/30/50/100 M lengths.

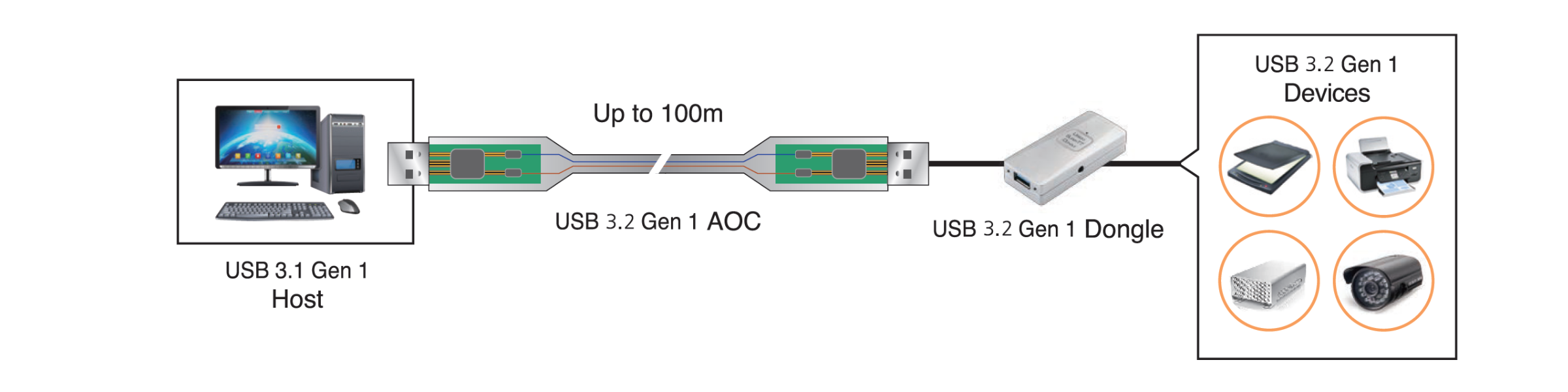

Application
