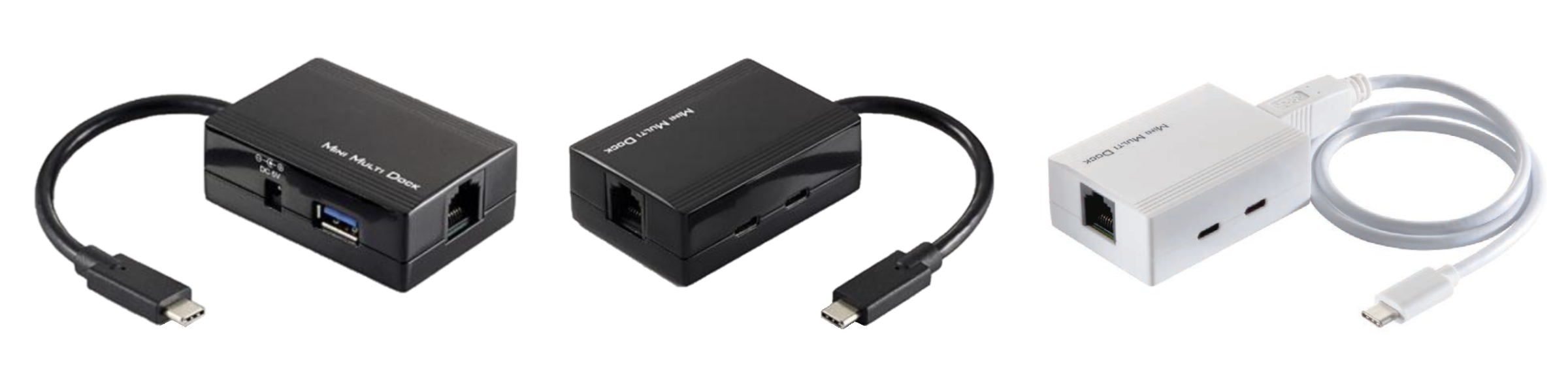

LAN-C301

Mini Multi Dock

LAN-C301

Description

  This dock comes with 1*USB 3 Gen 1 Type-A port + 2*USB-C port + 1*Gigabit Ethernet port, giving access to super fast network speeds. It is compliant with USB 3 Gen 1 specification, users can simply connect this dock to the network and all USB peripherals. It can increase your desktop and laptop’s connectivity with three USB 3 ports (1A2C) as well as a Gigabit Ethernet. This dock provides 3 additional USB 3 Gen 1 super speed ports plus a GigabitEthernet port. It is great for slim laptops that don’t have Ethernet built-in.This special extension dock can be connected to USB 3 Gen 1 (USB 2.0) devices & also USB 3 Gen 1 Type-C devices to your computer or laptop, such as USB flash drive, hard disk drive, digital cameras, MP3 players and so on. The Gigabit Ethernet brings a wired internet connection to your laptops, giving you access to a high-speed and reliable network. As a Mini Docking station, it offers connection capability for desktops, notebook PCs, Ultra books, game consoles and.

Feature

● 100% Brand New.

● Provides two USB-C ports, one USB 3 Gen 1 Type-A port, and one Gigabit Ethernet port.

● Supports USB 3 Gen 1 Super Speed (5 Gbps) transmission, downward compatible with USB 2.0/USB 1.1.

● USB-C Port supports data-transfer speed to 5 Gbps (USB 3 Gen 1).

● Supports USB 3 Battery Charging V1.2.

● Provides overcurrent protection.

● Gigabit Ethernet Port, transfer rate speed up to 1000 Mbps.

● Supports both Full-duplex with flow control and Half-duplex with back pressure operation.

● Supports Network Standards IEEE 802.3az, IEEE 802.3, 802.3u, and IEEE 802.3x.

● Supports Wake-On-LAN function, Energy-Efficient Ethernet, Jumbo frames, full duplex flow control.

● Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering.

● Supports checksum offload IPv4/IPv6/TCP/UDP and TCP Large Send Offload.

● Plug and Play Installation for Windows Vista,7,8,8.1,10.

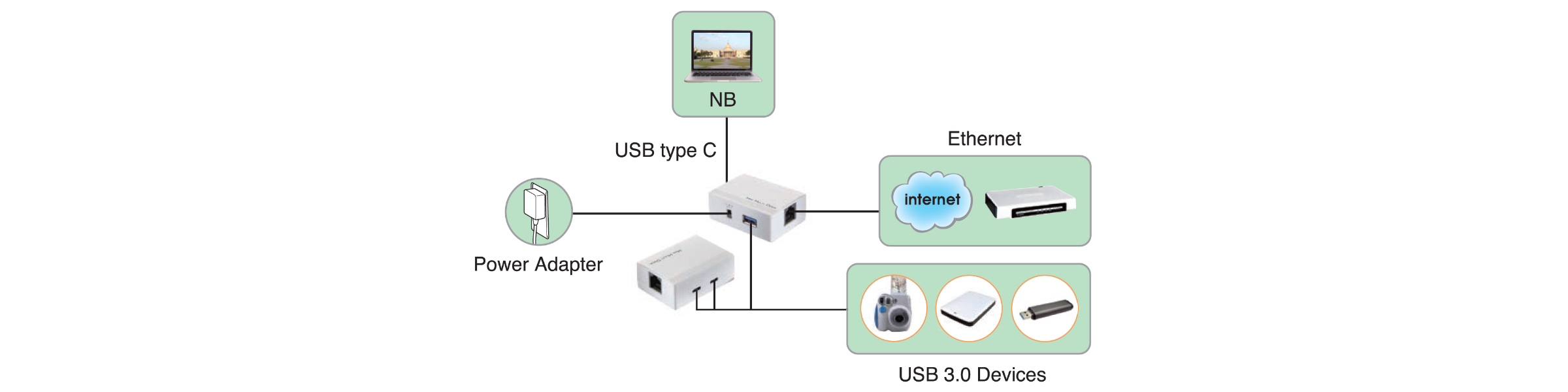

Application

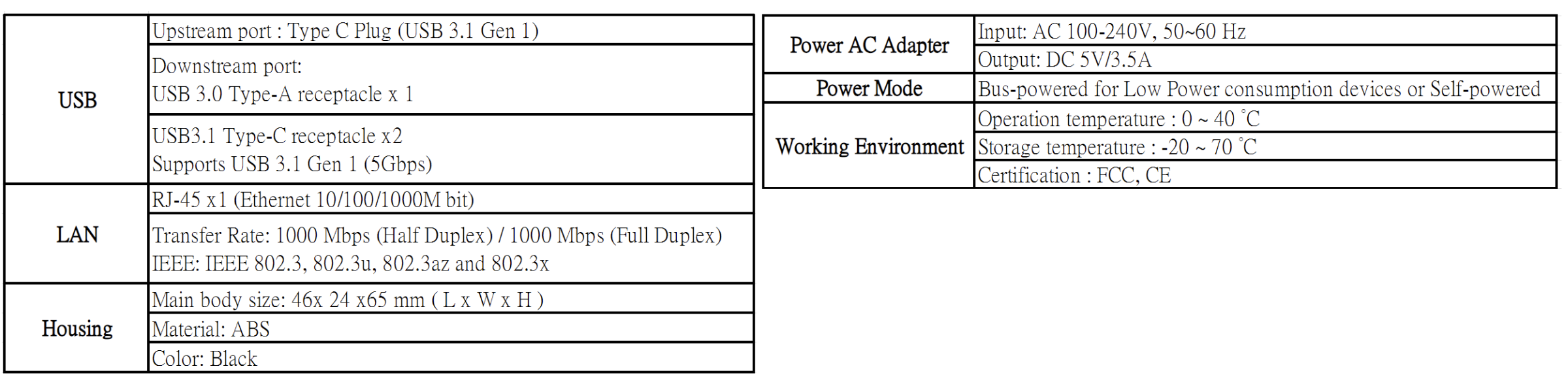

Specifications
