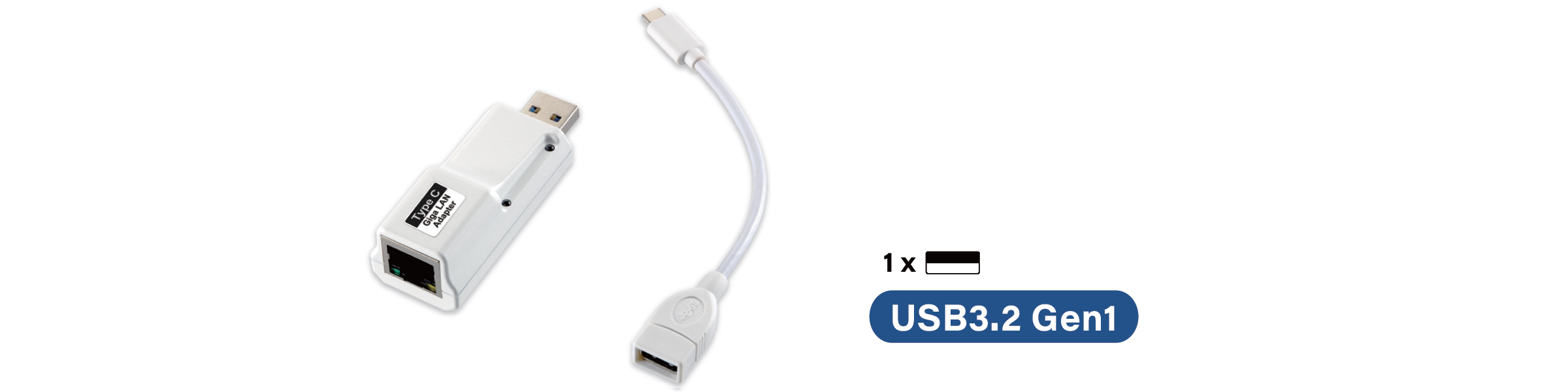

LAN-C308

Type C/USB3.2 Gen1 Type A Combo to GigaLAN Adapter

Description

  This LAN-C308 is a high performance, compact design and simply plug-and-play USB 3 Gen 1 to GigaLAN Adapter , with backward compatibility with USB 2.0/1.1 and LAN speed 10/100/1000 Mbps auto-negotiation capability. Easily plug into an available USB Port on a desktop, Notebook and Ultra book.

Feature

● USB 3 Gen 1 specification with up to 5 Gbit/s, backward compatible with USB 2.0/1.1.

● USB Bus Powered only.

● Support Suspend and Remove WakeUp Function.

● Compliant with IEEE 802.3 / 802.3u / 802.3ab.

● Support 802.3az EEE (Energy Effi cient Ethernet).

● Support 10/100/1000Mbps with auto-negotiation.

● Support IEEE 802.3x flow control at full duplex mode and back pressure at half duplex mode.

● Support IEEE 802.1Q VLAN tagging.

● Support Jumbo frame up to 4KB.

● Support IPv4/IPv6 pack Checksum Offload Engine (COE) to reduce CPU loading.

● Support MDI/MDIX auto-crossover detection and auto-correction.

● LEDs Indicate speed and link status.

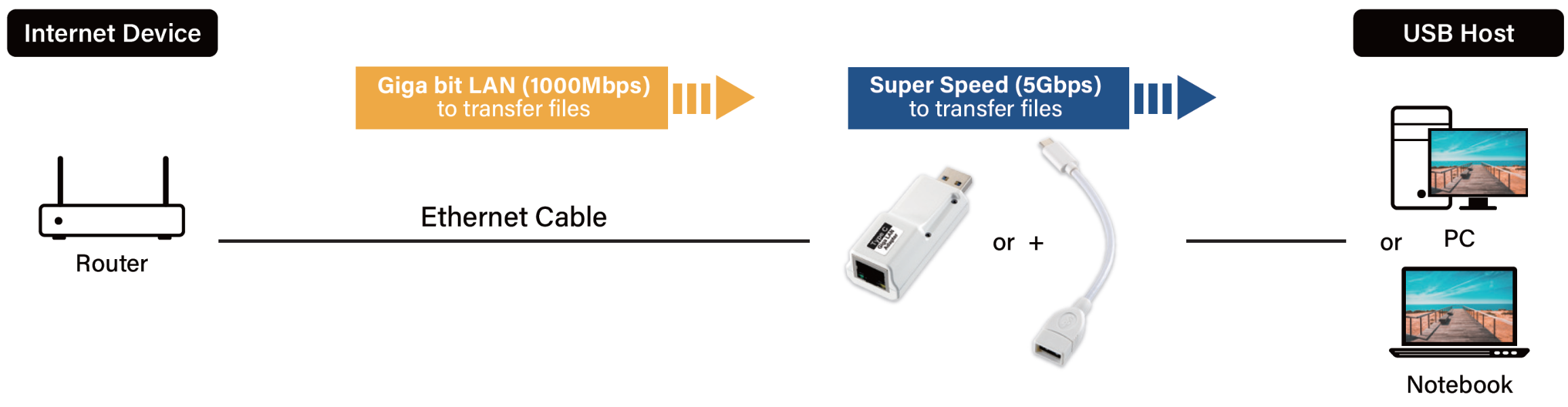

Application
