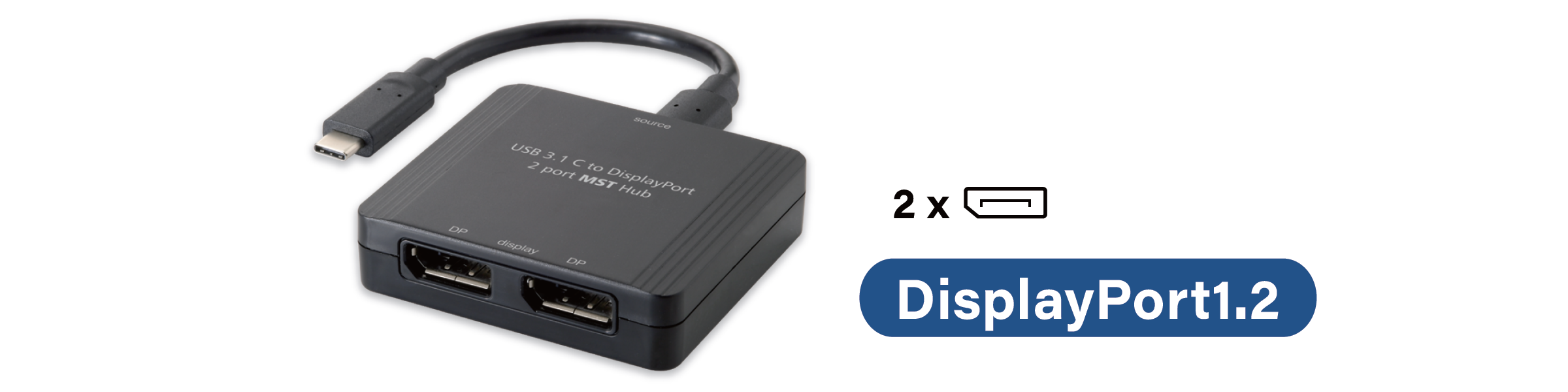

LAN-C312

Type C to DisplayPort1.2 2-port MST Hub

E-DM

Description

  The USB 3 Gen 1 Type C to DisplayPort 2 port MST Hub is designed for connecting a USB-C to DP embedded device (television, monitor ... etc). It is supports MST (Multi Stream Transport) function. Connect to 2 displays individually up to 4K/2K@30Hz resolution for either stream. Connect to 1 display individually up to 4K/2K@60Hz resolution, another DP port up to 1080p@60Hz.

Feature

● Type C plug :

  * Support normal or reverse plug, plug and play.

  * Compatible with thunderbolt V3.

  * Support Multi Stream Transport compliant.

● DisplayPort :

  * DisplayPort dual mode V1.2a compliant.

  * Support Multi-Stream Transport.

  * Connect to 2 displays individually up to 4K/2K@30Hz resolution for either stream.

  * Connect to 1 display individually up to 4K/2K@60Hz resolution, another DP port up to 1080p@60Hz.

  * Support collage mode for two monitors of 1080p.

  * Support AMD Eyefinity, NVIDIA Surround and Intel Collage compatible.

  * Support EDID1.4 and HDCP 1.3, plug and play.

● Video: EDID1.4 and ECA861 video timing and formats from 24 to 48bits/pixel in RGB, YCC422, or YCC444 color.

● Audio: DisplayPort 1.2a standard info frame packets and IEC 60958/61937 type audio stream packets ranging from 16 to 24 bits/sample, 7.1Ch up to 192KHz sample rates.

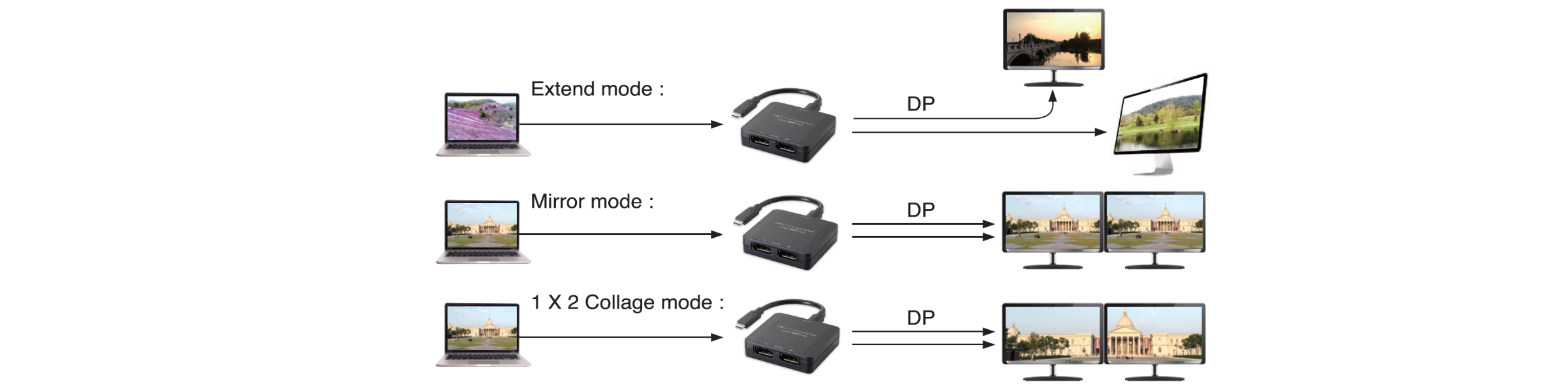

Application
