LAN-0210

USB2.0 4-Port Extender Kit

E-DM

Description

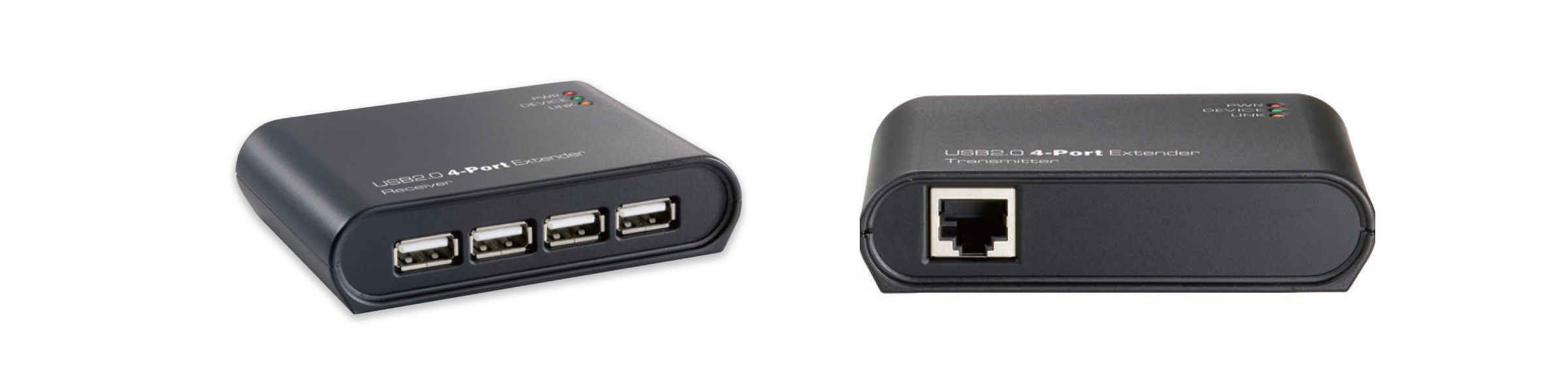

  The USB 2.0 4-Port Extender Kit allows up to four (4) USB 2.0 devices to be connected to a USB hostvia CAT5e/6 cable.This useful device is perfect for extending the distance between your computer and USB devicesby up to 50m, by using CAT5e or higher cable.The USB 2.0 Extender Kit is composed of a local unit, which must be connected directly (not via ahub) to a USB port on your computer, and a remote unit with a built-in USB 2.0 hub allows you toconnect up to four USB 2.0 devices to send data transfer rate up to 50m. CAT5e or higher networkpatch cable is then required to connect the two units together.

Feature

● USB 2.0 High Speed (480Mbps), backwards compatible with USB 1.1 Full Speed (12Mbps).

● Remote unit built in 4 port hub to connect 4 USB 2.0 devices.

● Extend four USB 2.0 devices up to 50 meters over CAT5e/6 cable.

● Support suspend/resume detection.

● Support Hot Plug.

● No additional driver required.

● Power supply for remote unit included.

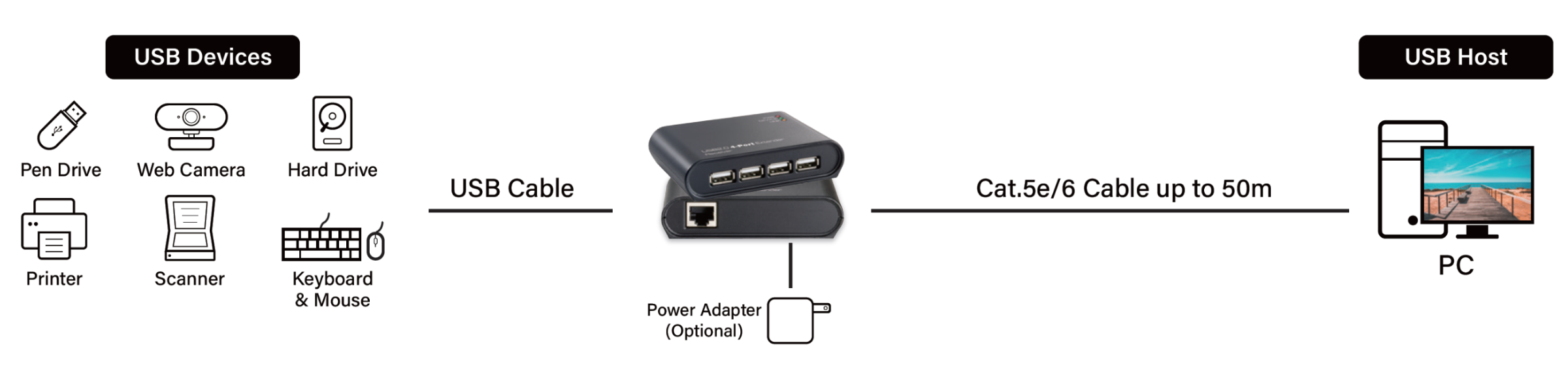

Application
