LAN-0307

USB3.2 Gen1 7-Port HUB, Metal Case, Industrial Level

E-DM

Feature

● Compliant with USB 3 Gen 1 Specifications Rev. 1.0.

● Backwards compatible with USB 2.0/1.1.

● Supports simultaneous USB 3 Gen 1 Super-speed, USB 2.0 high speed , USB 1.1 full speed and low speed devices.

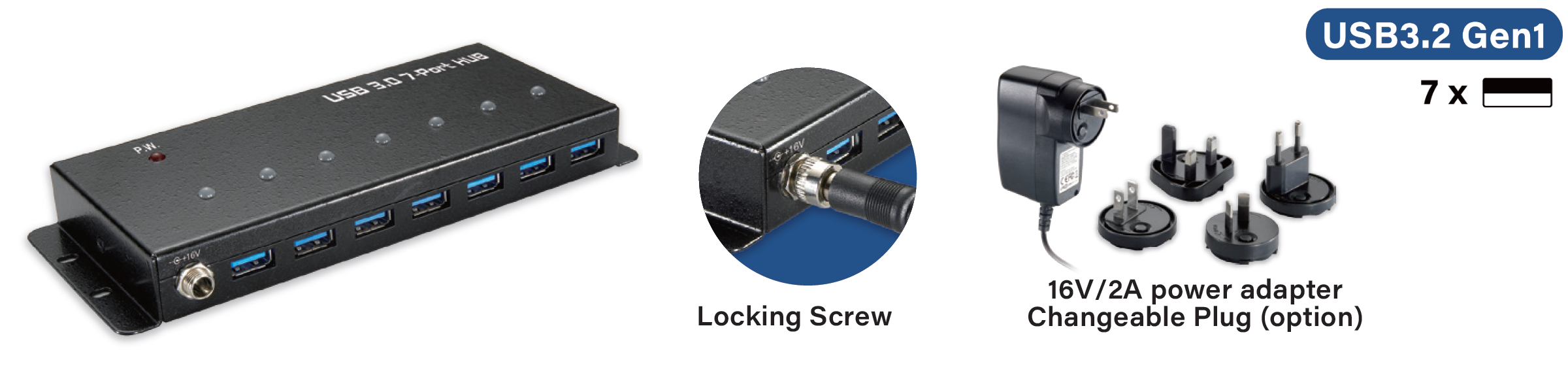

● DC Jack with Locking Screw.

● Self powered operation, 16V, 2A DC power supply included.

● Shielded metallic construction.

● Over current detection and protection.

● LEDs indicated LINK/AC Power and devices connection status.

● Integrated brackets for mounting (screws not included).

● Operating temperature: 0 ~ 70° C.

● Storing temperature : -25 ~ 85° .

● Dimensions: 185 x 75 x 22mm (WxDxH).

● Compatible with Windows 8/7/Vista/XP and Mac OS 10.8/10.7 and Linux.

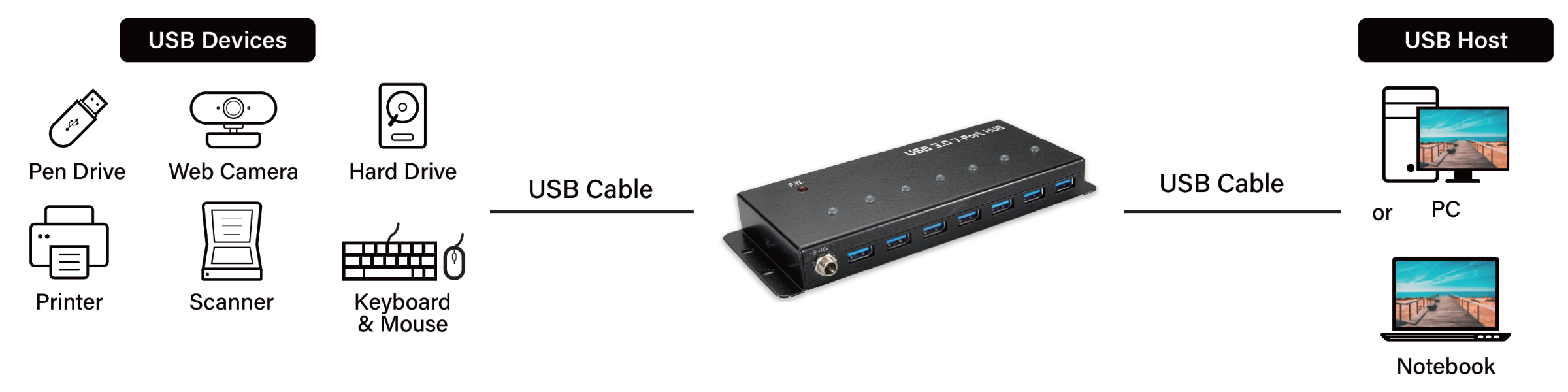

Application
