LAN-C304

USB3.2 Gen2 Type C 4-Port Combo Metal Hub w/ESD Surge Protection

E-DM

Feature

● Compliant with USB3.2 Gen2 Type C and backwards compatible with USB3.2 Gen1/2.0/1.1/1.0.

● Supports simultaneous USB3.2 SuperSpeed+, USB3.2 SuperSpeed, USB2.0 High Speed, USB1.1 Full Speed and USB 1.0 Low Speed devices.

● Support 15KV ESD Surge Protection.

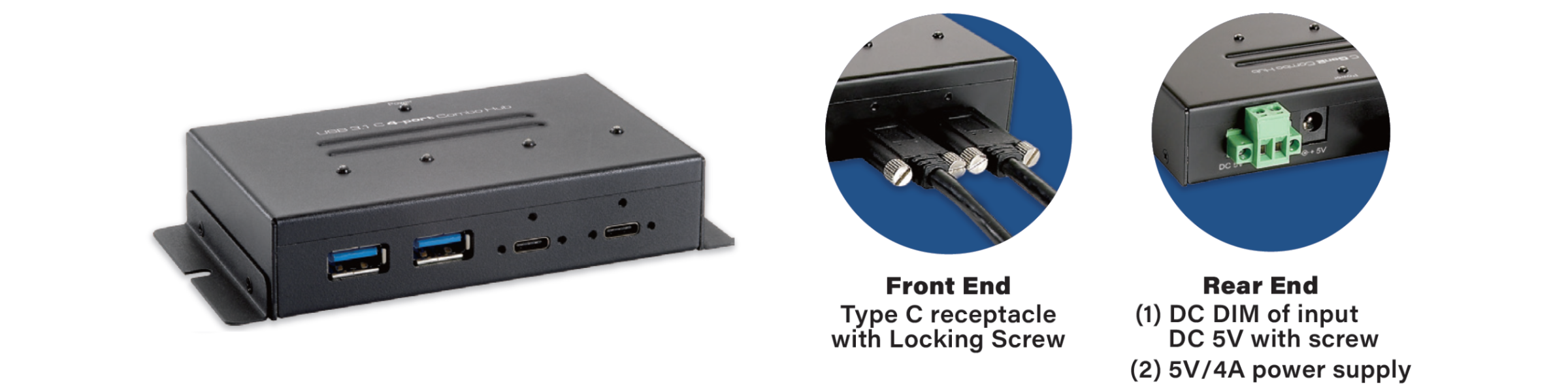

● Type C receptacle with Locking Screw and 0.6 m Type C to Type C cable included.

● Two self-powered sources choice (1) DC DIM with screw or (2) 5V/4A power supply.

● Operating temperature: 0~70C and Storing temperature: -25~85C.

● Dimensions: 106.5 x 63.4 x 24.6 mm (WxDxH).

● Compatible with Windows 10/8/7, Mac OS 10.7 above and Linux.

● Interface: 1 x USB Type C (Upstream) to 2 x USB Type A and 2 x USB Type C (Downstream)

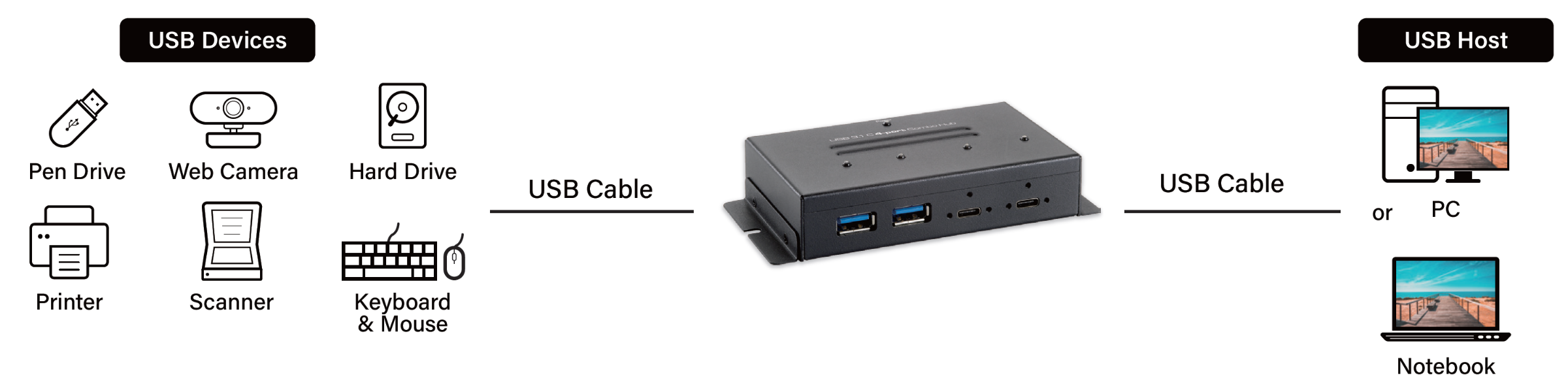

Application
