LAN-0202H

USB2.0 4-Port Hub + Repeater Cable 6m,8m,12m

E-DM

Description

  The LAN-0202H is a highly integrated, high quality, high performance, low power consumption, and low cost solution for USB 2.0 4 Port HUB, This HUB with an active repeater cable that extends the distance between the HUB and the computer up to 12 Meters. The USB HUB assures signal quality and maintains electrical and timing specifications are in full compliance with USB 2.0/1.1 standard. Power directly from the USB Port. It is recommended to plug in the outer Power Adapter when loaded with heavy duty devices. With its unique design, this HUB can lock to LAN-0202R, USB 2.0 Active Repeater Cable by clipping between USB A Male and Female end, making firmly connections without breaking links between cables. Up to 5 of this HUB & USB Active Repeater Cables chained together, you can reach for a maximum distance up to 60 meters.

Feature

● 4 downstream USB 2.0 Port.

● Full compliance with USB 2.0 / 1.1 specification.

● Plug and Play. No additional drivers required.

● Cable length - 6/8/12 Meters.

● Housing dimension:81.7mm*41mm*16.7mm.

● Connector: 1*USB type A Male and 4*USB type A Female.

● Supports Windows , Mac OS X 10.x

● Operating Temperature:0°C ~ 50°C

● Storage Temperature:-20°C ~ 75°C

● Power Adapter (AC/DC, 5V/2A) (Optional)

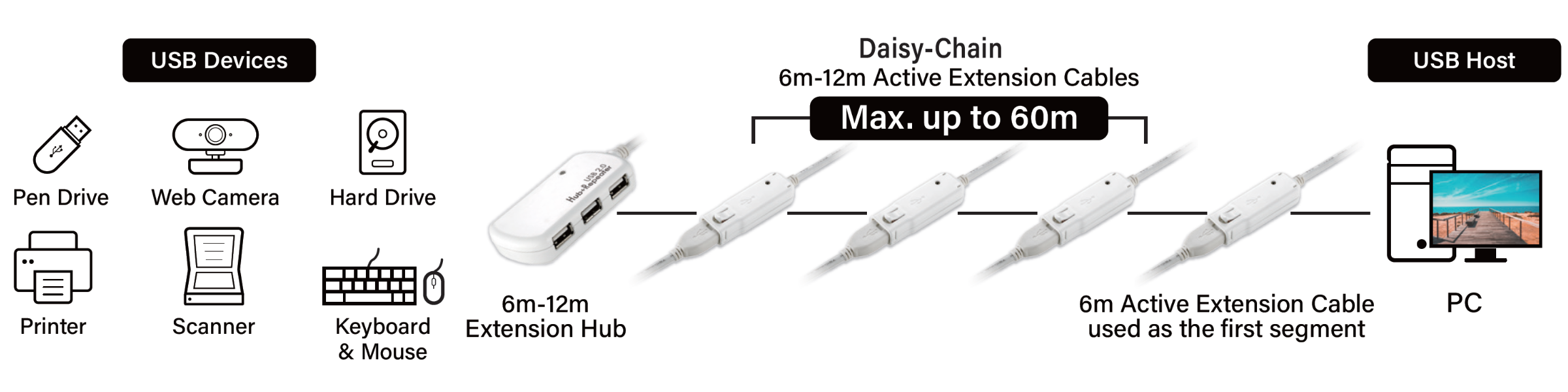

Application
