LAN-0202R

USB 2.0 Active Repeater Cable, AM-AF, 6/8/12M

E-DM

Description

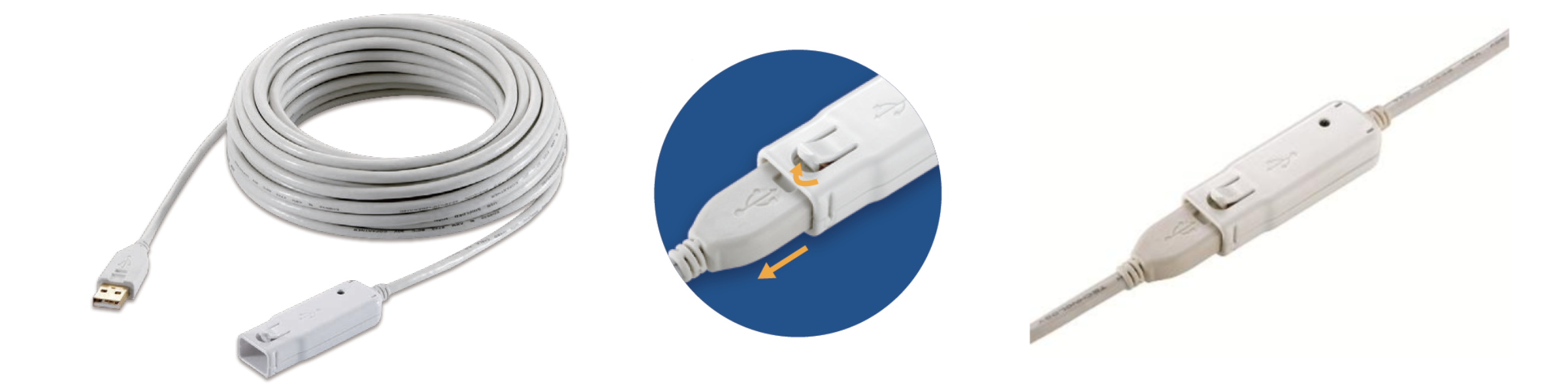

  The LAN-0202 is a highly integrated, high quality, high performance, low power consumption, and low cost solution for USB 2.0 Active Repeater Cable,. This repeater cable is an active extension cable that extends the distance between the USB device and the computer up to 12 Meters. Unlike ordinary USB extension cable, this USB repeater cable assures signal quality and maintains electrical and timing specifications are in full compliance with USB 2.0/1.1 standard. Power directly from USB port, can be chained together for a maximum distance up to 60 meters. In such circumstance outer power source is required, take the LAN-0202-H with Power Adapter to formed the 5th segment for 60 meters connection. With its unique design, this repeater cable can lock to another LAN-0202 Cable by clipping between USB A Male and Female end, making firmly connections without breaking links between cables.

Feature

● Full compliance with USB 2.0 / 1.1 specification.

● Bus power (direct power from USB port) support.

● Plug and Play. No additional drivers required.

● Cable length - 6M / 8M / 12M.

● Housing dimension 64.0 mm x 22.2 mm x 13.3 mm.

● Connector: USB type A Male and USB type A Female.

● Supports Windows , Mac OS X 10.x

● Operating Temperature:0°C ~ 50°C

● Storage Temperature:-20°C ~ 75°C

● Compliance:CE,FCC

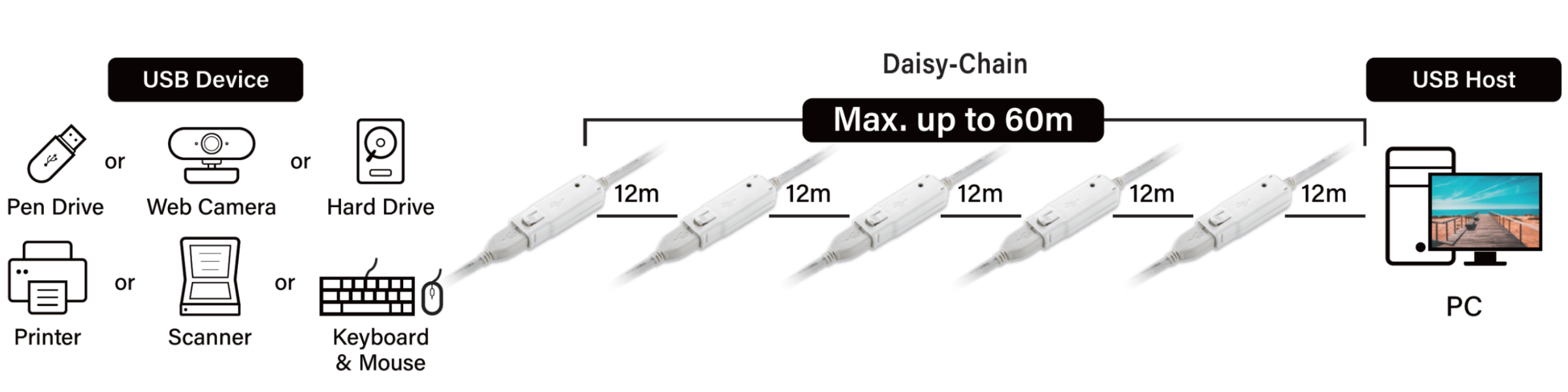

Application
