LAN-0228

DP 1.2 2-port with USB 2.0, 4-port Sharing Switch (w/Hot Key)

E-DM

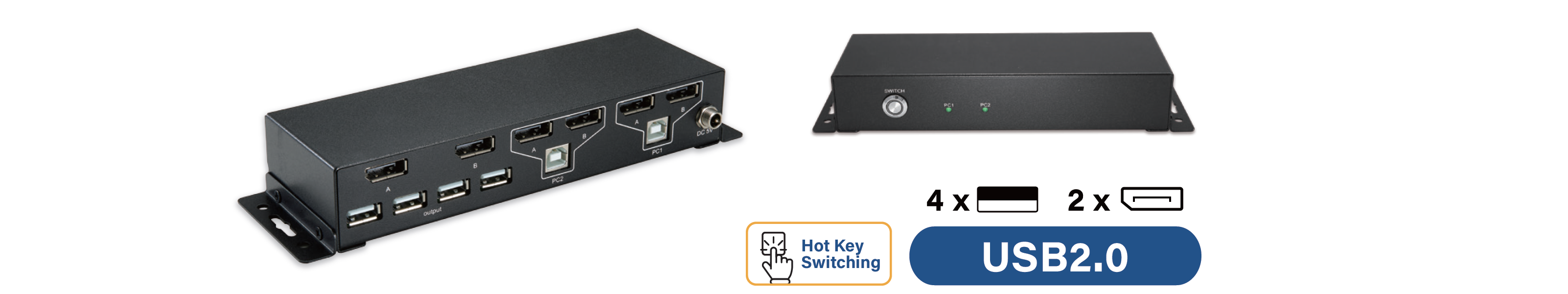

Description

  The 2-port Dual Head DP 1.2 Sharing Switch allows access to 2 computers from a single USB keyboard and mouse with dual monitors with 4 port USB 2.0 / USB 3 Gen 1 HUB. They are compatible with USB devices. These connections provide digital video & digital audio capabilities in ultra-high resolutions (4K@60Hz). With its unique design and innovative features, the LAN-0228 / LAN-0328 provide superior functionality in any environment, multimedia applications, gaming setups and multi-computer office environments.

Feature

● DisplayPort :

  * DisplayPort V1.2 compliant up to 4K/2K@60Hz,3D format.

  * EDID pass throug.

● Video support :

  * ECA861 video timing and formats from 24 to 48bits/pixel in RGB/YCC.

  * Deep color support : RGB/YCC(4:4:4) - 16bit color,YCC(4:2:2) - 16bit color.

● Audio support :

  * DisplayPort 1.2a standard info frame packets and IEC 60958/61937 type audio stream packets ranging from 16 to 24 bits/sample, 7.1 Ch up to 192KHz sample rates.

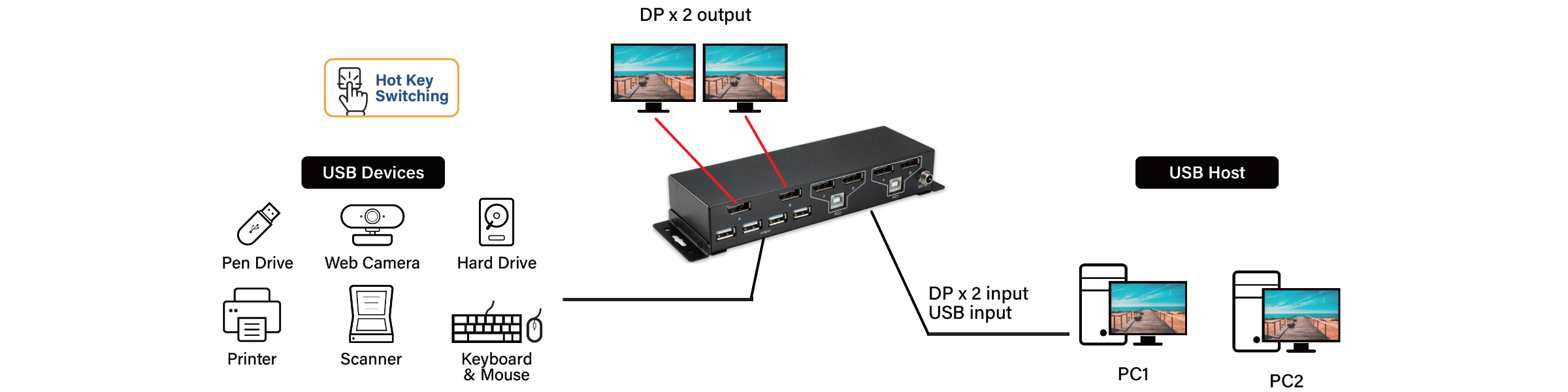

Application

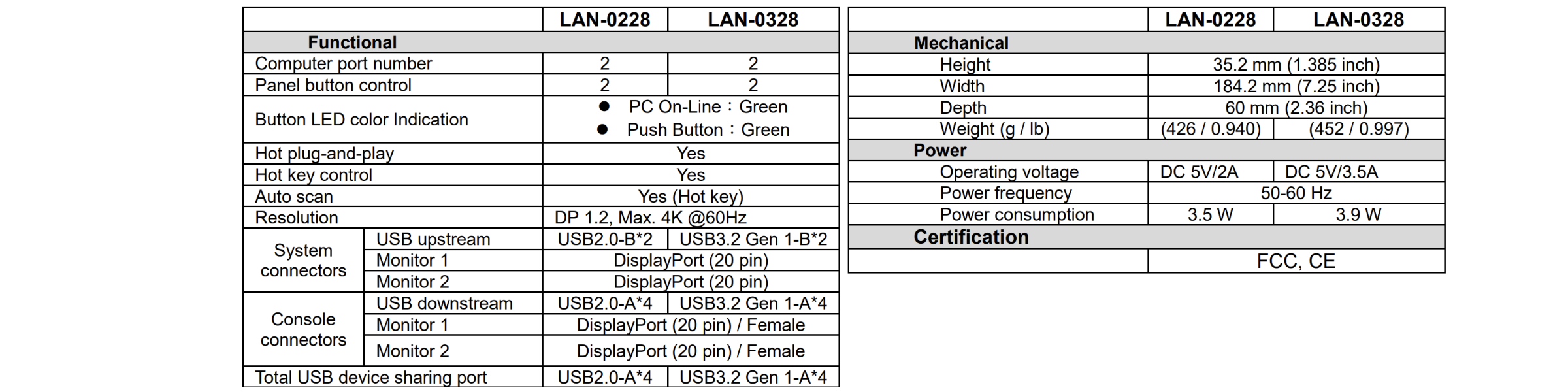

Specifications
